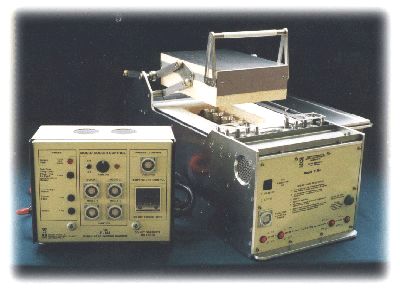

The Beadmaster FM-4

The top of the line Beadmaster fusion machine uses mouldibles, a combination crucible and mould, to eliminate the pouring step from the fusion process. The Beadmaster has a four mouldible capacity, giving an out put of 16-32 samples per hour, and is ideal for production situations or busy labs requiring a lot of beads to be produced reliably, with the added safety of mouldibles to eliminate pouring of hot melts. The Beadmaster is fully upgradeable to the Auto-Beadmaster for increase sample loads. The Beadmaster will fuse the most difficult samples easily and repeatedly.

Features of the Beadmaster include:

  • All electric - why electric?
  • No reheating time between samples
  • Cross flow blending during fusion
  • 4 mouldible capacity
  • 16-32 samples per hour output, depending on sample type
  • Variable cooling rate and time
  • Controlled environment during fusion - options
  • Single service, plug and play machine - portable
  • Completely covered fusion process
  • Upgradeable to full automation
  • Unique mould release options
  • Long, maintenance free periods - approx 14000 running hours
  • Fast initial rise time - 20mins to 1050°C from cold
  • Digital temperature control to within 1°C
  • Top temperature of 1200°C, with normal fusion at 1050°C
  • Runs from standard power - 240V or 110V option, single phase
  • 3000W power
